1. What should you check first on an old BMW E30?
5. Driveshaft Flexible Coupling
What should you check first on an old BMW E30?
There is no single component that fails on every E30, and the condition of an individual car depends heavily on its engine, mileage, maintenance history and how it has been stored.
However, age-related cooling-system problems and worn rubber components deserve particular attention because they can develop into much more serious failures if ignored.
For an E30 restoration, it is therefore worth looking beyond the engine itself. The cooling system, suspension mounts, drivetrain couplings and fuel system can all have a major effect on reliability.
The best approach is not to wait for a component to fail. On a car that is already several decades old, replacing visibly aged or questionable components during a restoration is often considerably easier than dealing with the same failure after the car is back on the road.

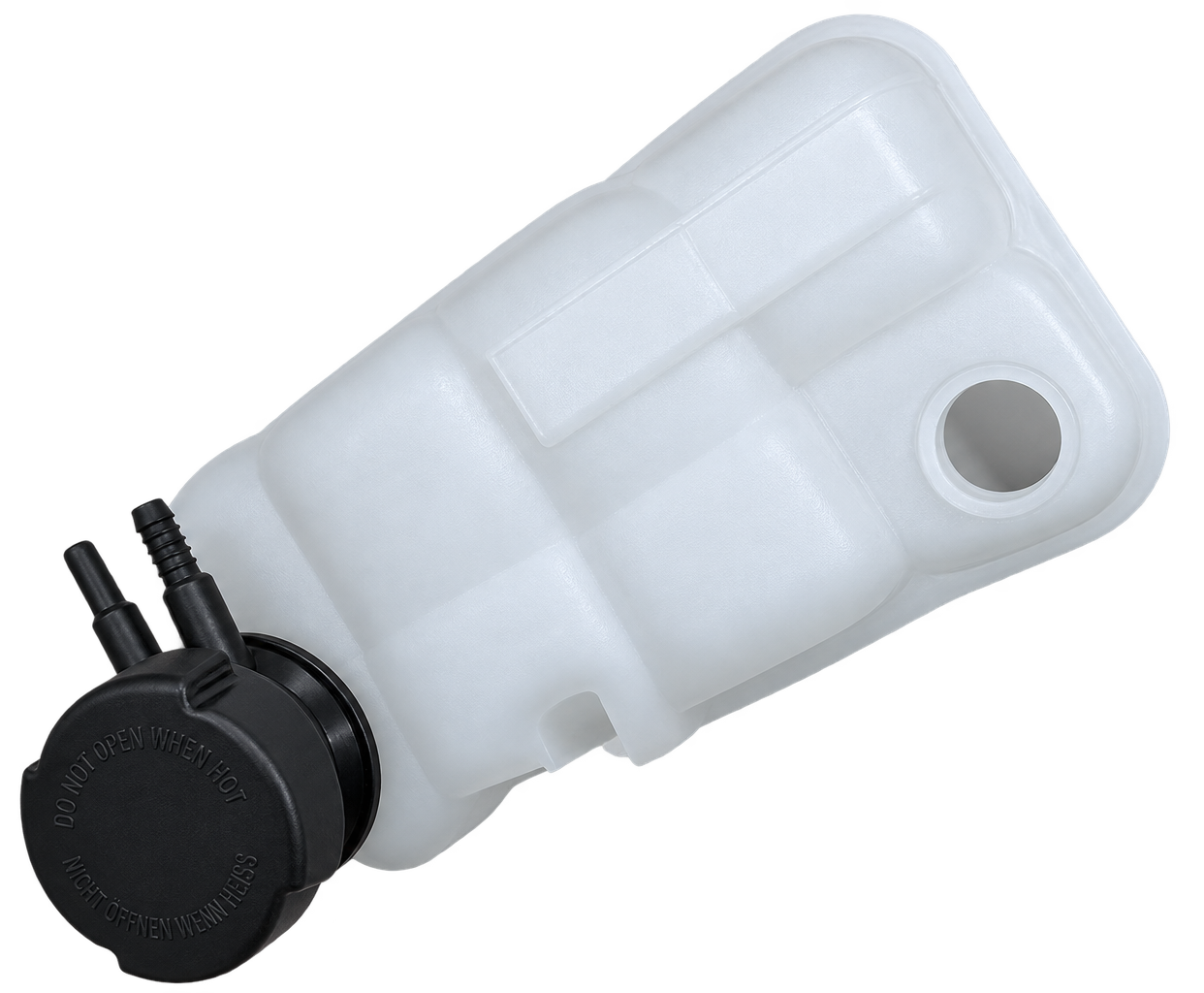

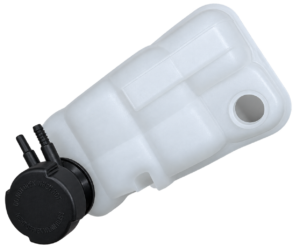

Coolant Expansion Tank
The cooling system is one of the areas that deserves particular attention on an E30, especially on cars equipped with the M20 six-cylinder engine.
The expansion tank is made from plastic and has spent decades exposed to coolant, pressure and repeated temperature cycles. Over time, the material can become brittle and small cracks can develop around the tank or its connections.
A leaking expansion tank should not be treated as a minor inconvenience. Loss of coolant can quickly lead to overheating, and overheating is one of the situations that an older BMW engine is best protected from.
Cracks are not always obvious when the engine is cold. A cooling system operates under pressure when the engine is at operating temperature, so a component that appears perfectly dry during a basic inspection can still develop a leak once the car is driven.
The expansion tank is therefore worth inspecting carefully during any E30 restoration. Look for discolouration, dried coolant residue, visible cracks and signs that the tank has previously leaked.
Because the component is relatively simple to replace, it makes sense to deal with an ageing tank before it becomes a roadside failure.
OctoClassic product:
https://octoclassic.com/product/bmw-e30-e36-coolant-expansion-tank-with-cap-17111712641

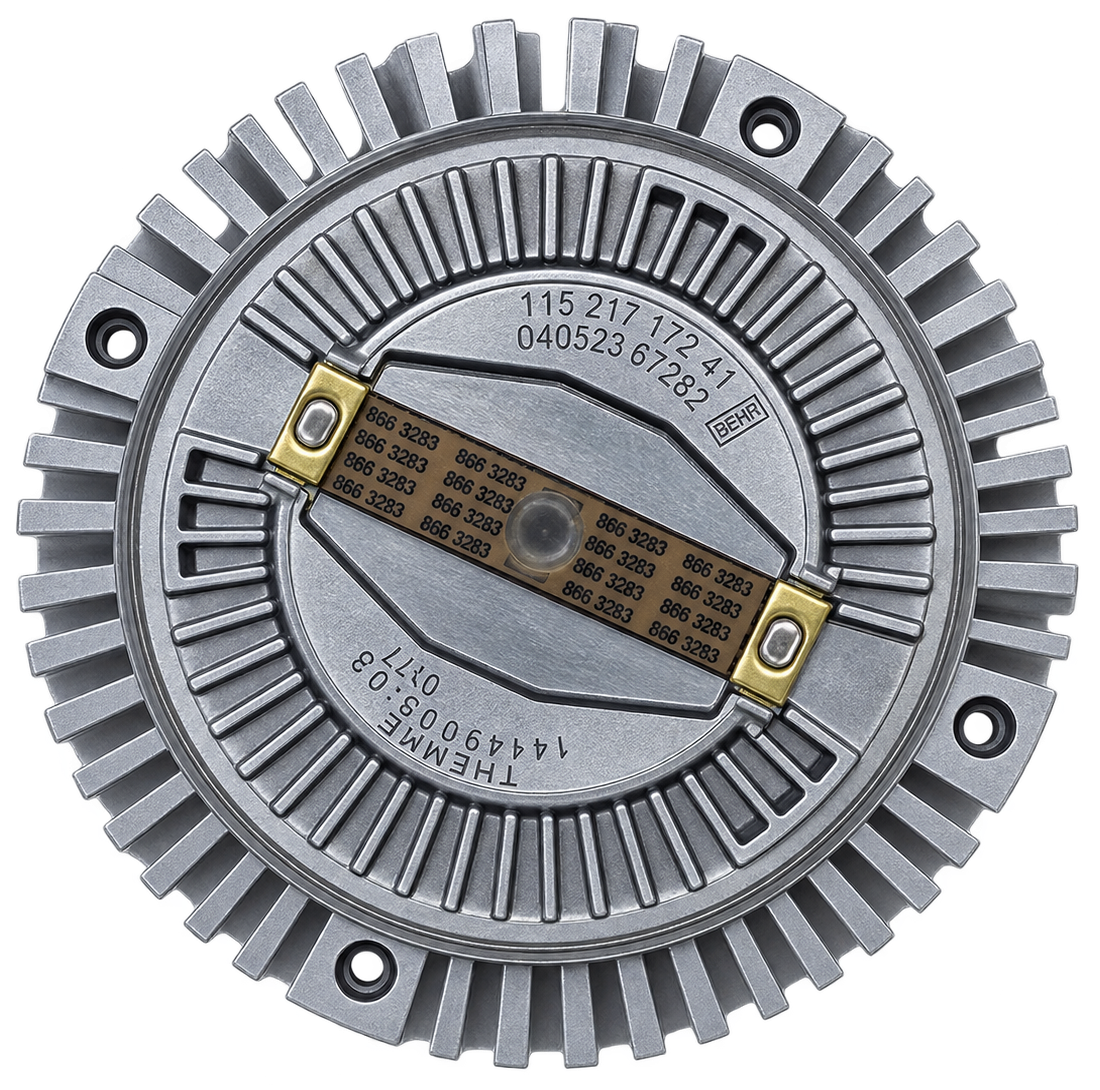

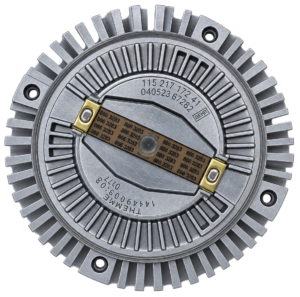

Viscous Fan Clutch
The mechanical cooling fan on many E30 models is controlled by a viscous fan clutch. Like many components on a 30- to 40-year-old car, it can eventually lose its ability to operate correctly.
The fan clutch is particularly important because it helps control airflow through the radiator when the engine is hot. With age, the internal fluid and mechanism can deteriorate, reducing the effectiveness of the fan.
A failing viscous clutch can be difficult to identify from a quick inspection. The fan may still turn, but that does not necessarily mean the clutch is working correctly.
Overheating, unusually high engine temperatures in traffic or abnormal fan behaviour can all justify a closer inspection of the cooling system.
The important point is that the fan clutch should be considered as part of the cooling system rather than as an isolated accessory. On an older E30, the radiator, expansion tank, water pump, thermostat, hoses and fan clutch should all be considered together.
Replacing a tired fan clutch can therefore be cheap insurance against a much more serious cooling-system problem.
OctoClassic product:

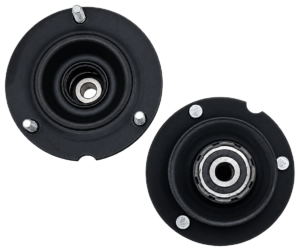

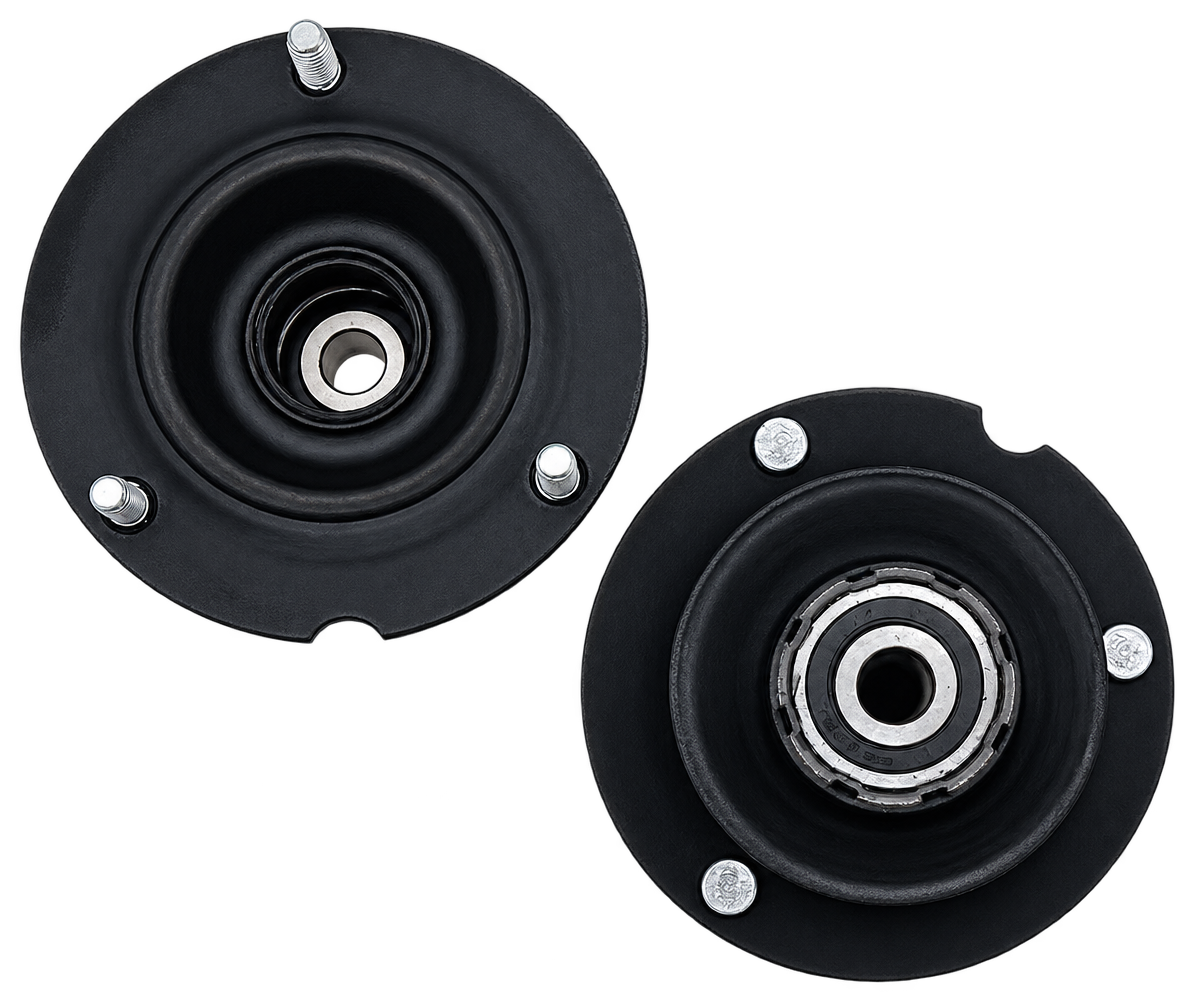

Front Strut Mounts
The front suspension of the E30 is another area where age eventually becomes noticeable.
The front strut mounts contain a bearing that allows the suspension strut to move as the steering wheel is turned. After decades of use, the rubber and bearing can wear, develop play or simply lose their original condition.
A worn mount can produce several different symptoms. The steering may feel less precise, the front suspension can become noisier over uneven surfaces and strange knocks or creaks may appear from the front of the car.
Because the mount connects the suspension assembly to the body, its condition also has an effect on the way the E30 feels on the road.
This is especially relevant during a suspension rebuild. If the struts, springs and other suspension components are being replaced, fitting fresh strut mounts at the same time can prevent old bearings and rubber components from compromising the rest of the work.
It is also worth checking both sides rather than replacing a single mount simply because one side is visibly worse. Suspension components work as a system, and significant differences between the left and right sides can affect the behaviour of the car.
OctoClassic product:
https://octoclassic.com/product/bmw-e30-e28-e34-strut-bearing-front-set-of-2-31331139452

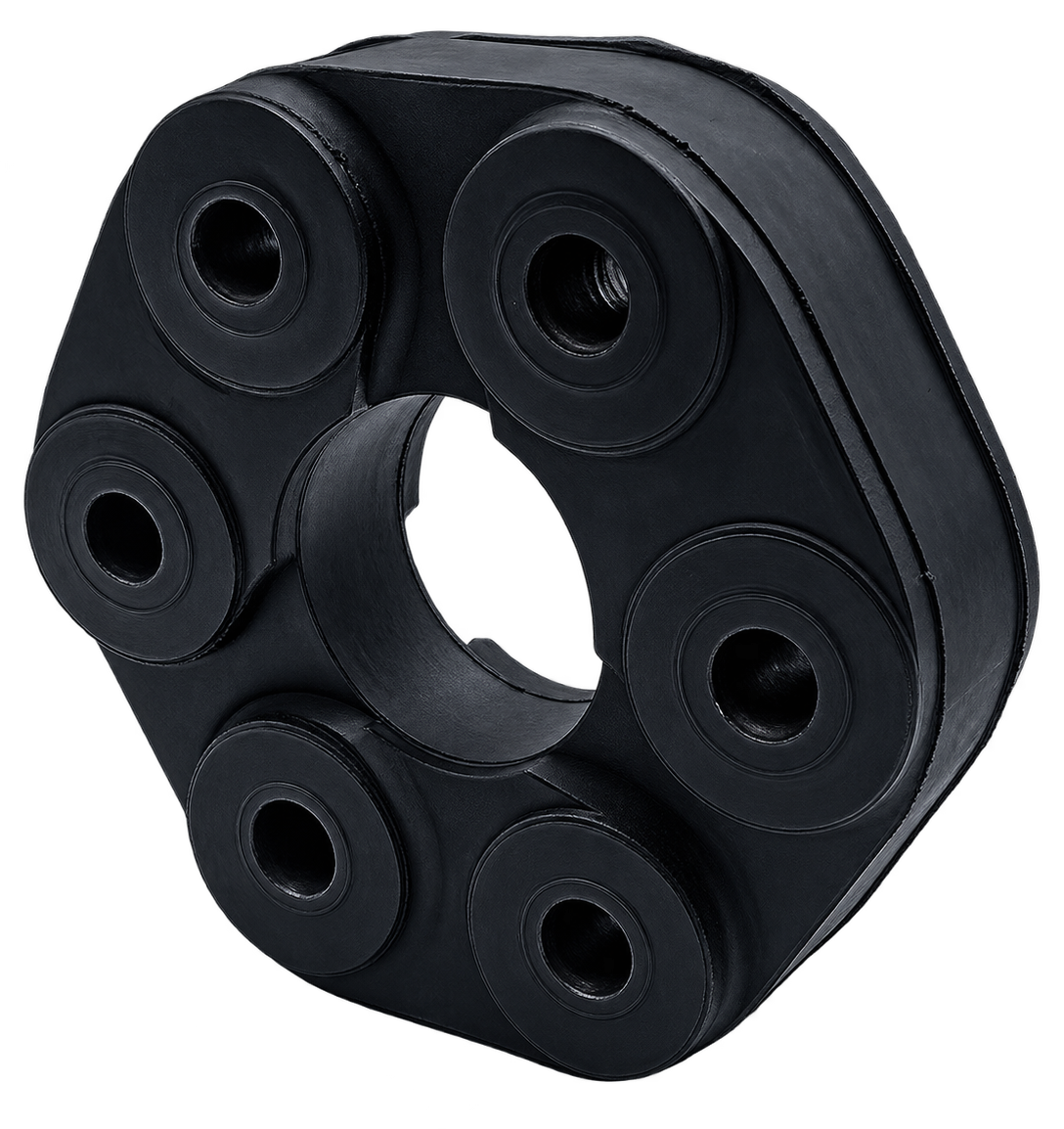

Driveshaft Flexible Coupling
The flexible coupling, commonly known as the guibo or Hardy disc, is one of the less glamorous components on an E30 but an important part of the drivetrain.
It connects the driveshaft to the transmission and is designed to absorb vibration and movement in the driveline. The component is made from rubber, which means that age is just as important as mileage.
After decades, the rubber can become hard, cracked or damaged around the mounting points.
A worn coupling can contribute to driveline vibrations, clunks or a noticeable shock when taking up drive. In some cases, the symptoms may initially be mistaken for a problem with the gearbox, differential or driveshaft itself.
The condition of the flexible coupling should therefore be checked whenever an E30 develops unusual vibration or a pronounced clunk when accelerating, lifting off the throttle or changing gear.
It is particularly important to inspect the rubber around all of the bolt holes. Cracks or significant deterioration in these areas are a good reason to replace the component rather than continue driving until it fails completely.
OctoClassic product:

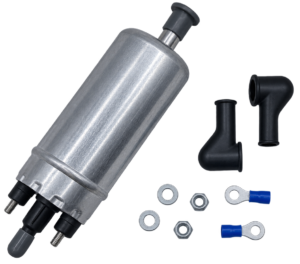

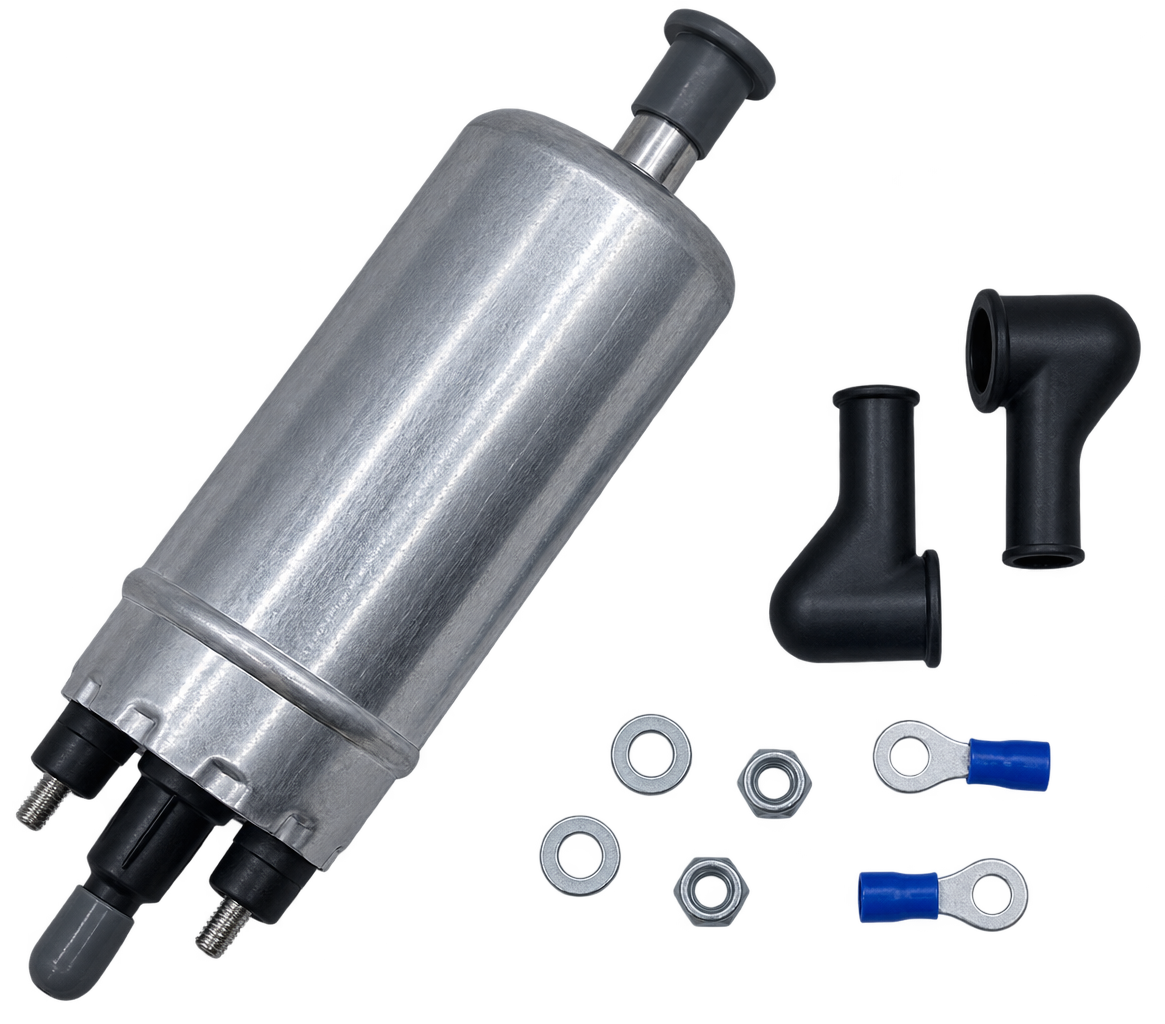

Electric Fuel Pump
The fuel pump is another component that can eventually fail simply because of age and accumulated operating time.
An E30 with a tired fuel pump may initially continue to run normally, making the problem easy to overlook. As the pump deteriorates, however, fuel delivery can become inconsistent.
Possible symptoms include difficult starting, hesitation under load, loss of power or an engine that suddenly refuses to start.
A fuel pump failure is particularly inconvenient because it can leave an otherwise mechanically healthy E30 completely immobile.
Cars that have spent long periods stored should receive particular attention. Fuel systems do not necessarily age well when a car is used only occasionally, and an original pump that has been sitting for years may not be something to rely on indefinitely.
Before replacing the pump, the rest of the fuel system should of course be checked, including the fuel filter, electrical connections and fuel pressure. However, the pump itself should be considered a service item on a very old car rather than something that will necessarily last forever.
OctoClassic product:
https://octoclassic.com/product/bmw-porsche-vw-3-bar-electric-fuel-pump-16121115862
Q: My E30 is not overheating. Do I still need to inspect the cooling system?
A: Yes. An E30 can have an ageing expansion tank, water pump, thermostat, hoses or fan clutch without showing an immediate problem. During a restoration, inspect the complete cooling system rather than waiting for the temperature gauge to tell you something is wrong. Any signs of cracking, coolant residue or unknown component age are worth investigating.
Q: How can I tell if the E30’s front strut mounts are worn?
A: Listen for knocking or creaking from the front suspension, particularly when driving over uneven surfaces or turning the steering wheel. Excessive play, imprecise steering or unusual movement at the top of the strut can also indicate a problem. If the suspension is being rebuilt, replacing old strut mounts at the same time is often sensible.
Q: What does a worn E30 guibo feel like when driving?
A: A deteriorated flexible coupling can cause vibration, clunking or a noticeable jolt when taking up drive, changing gear or suddenly applying or releasing the throttle. These symptoms can have other causes, so the driveshaft, differential and gearbox should also be inspected before identifying the guibo as the source.
Q: Can an old E30 fuel pump fail without warning?
A: Yes. A pump can gradually become weaker and cause starting difficulties, hesitation or loss of power, but it can also fail completely. If the history of the pump is unknown and the car is being prepared for regular driving after a long period of storage, checking the fuel system is worthwhile.
Q: Which E30 cooling components should be replaced together?
A: There is no universal replacement list because the correct approach depends on the engine and the condition of the existing parts. However, the water pump, thermostat, radiator, expansion tank, hoses and viscous fan clutch should be inspected as one system. Replacing only one component while leaving visibly aged parts around it may simply move the next failure somewhere else in the cooling system.
